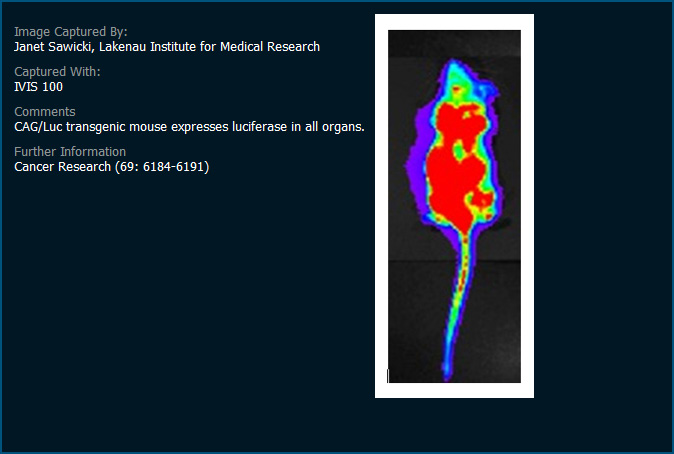

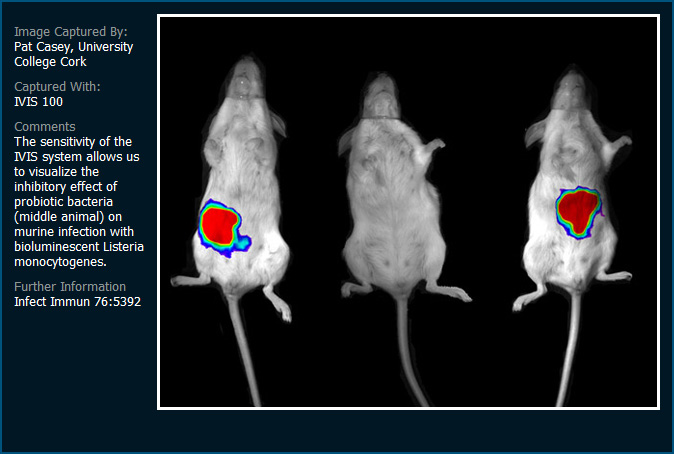

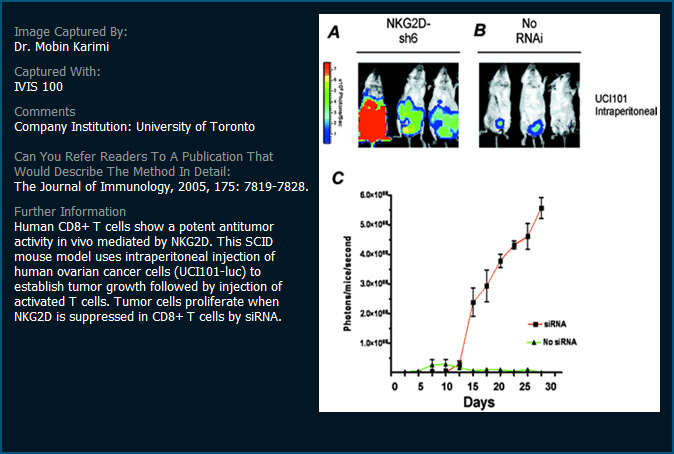

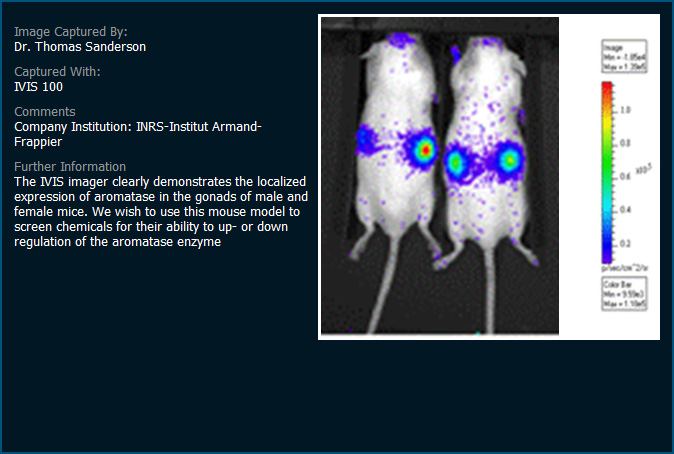

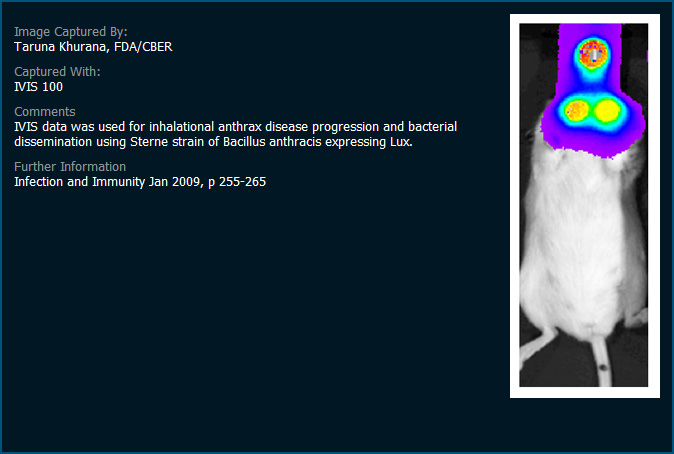

Comparison of IVIS® Specifications
Imaging Sytem
Component |

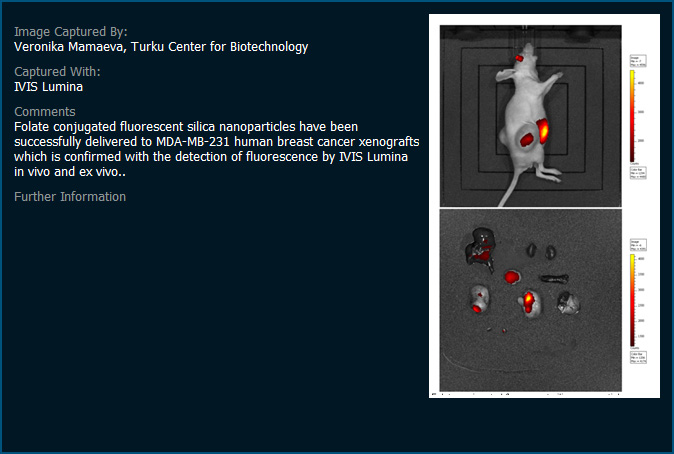

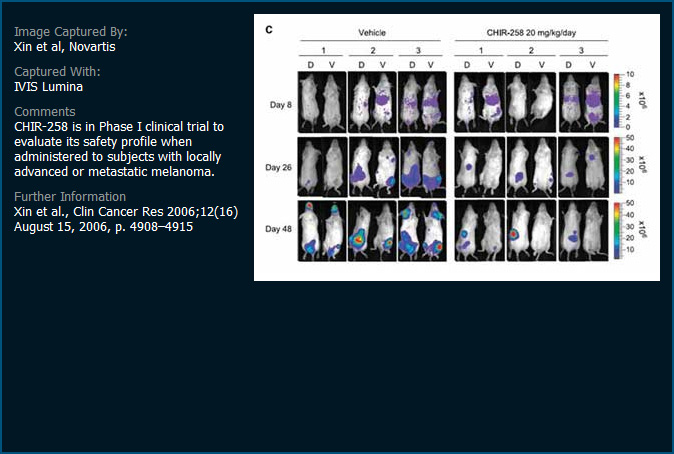

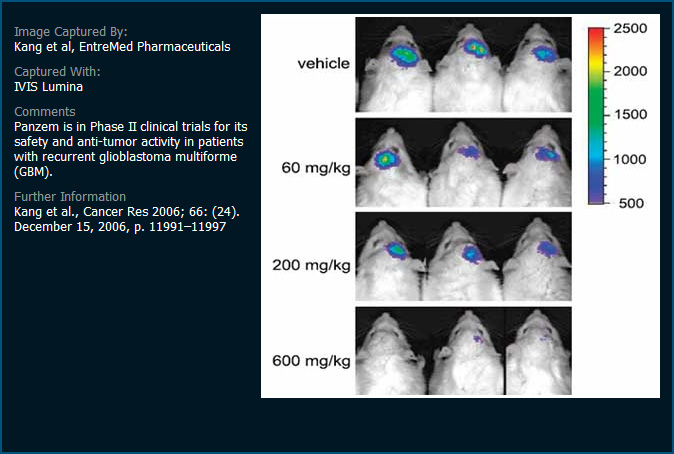

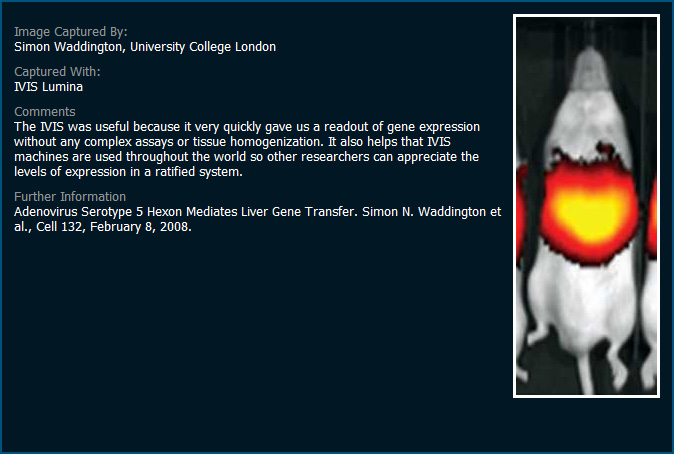

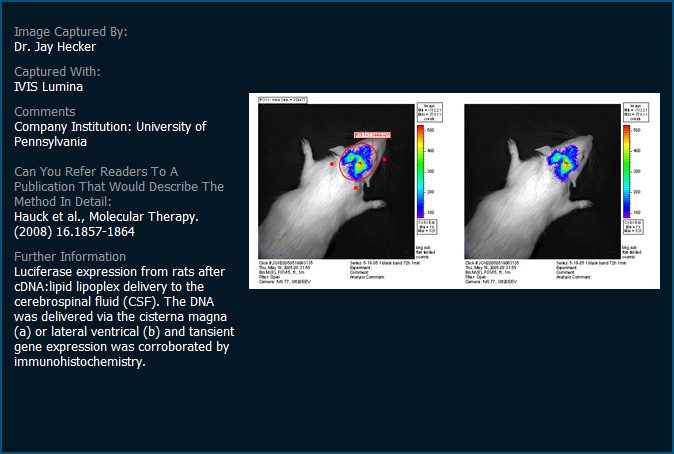

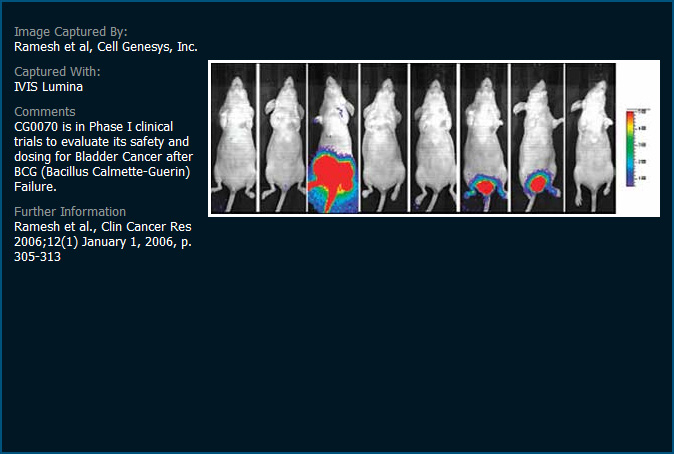

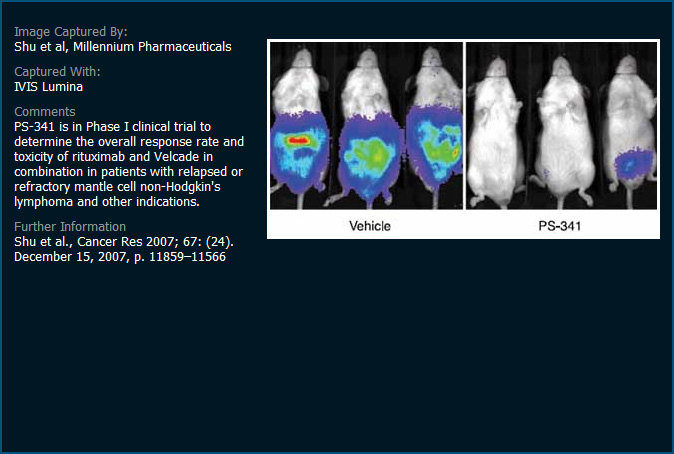

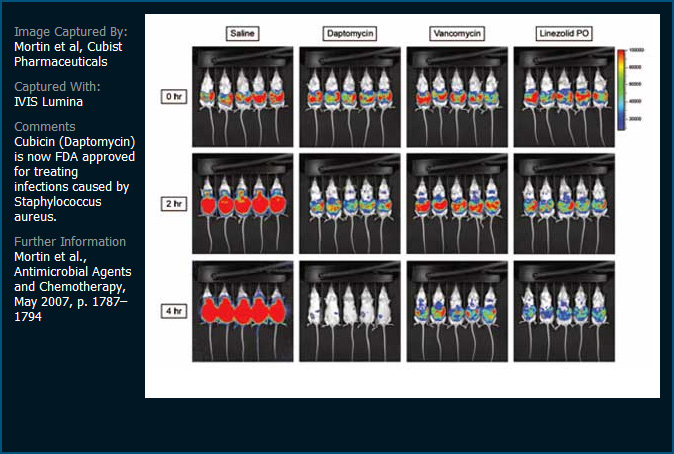

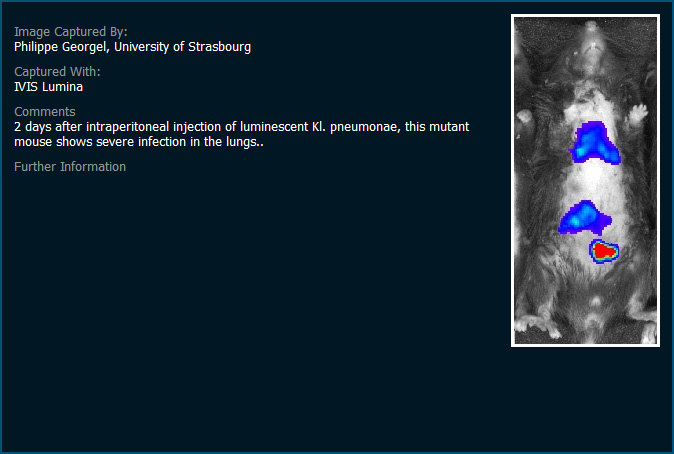

IVIS® Lumina II
Imaging System |
IVIS® Kinetic
Imaging System |

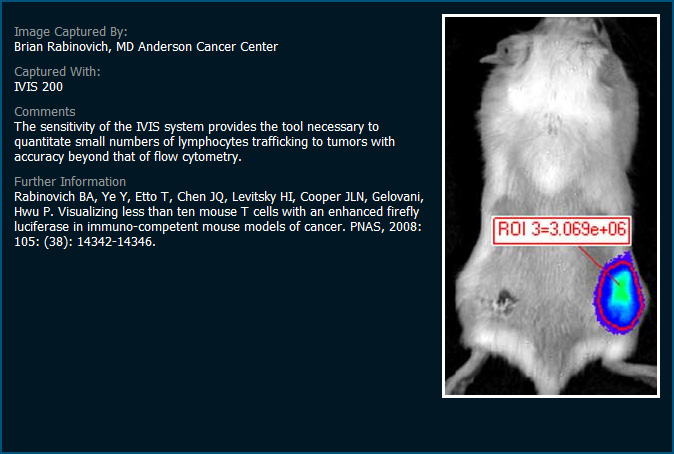

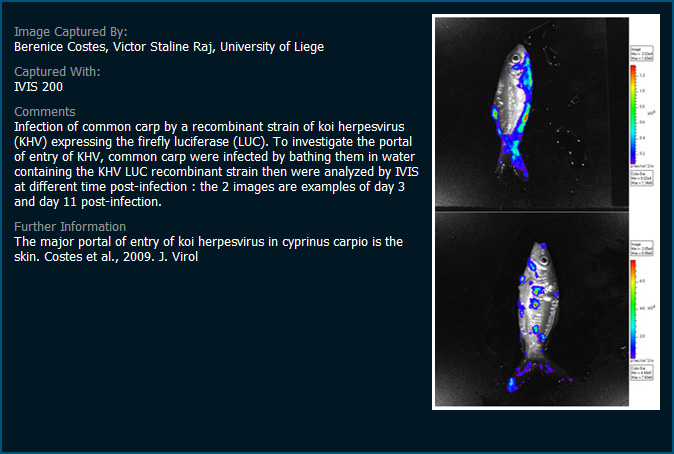

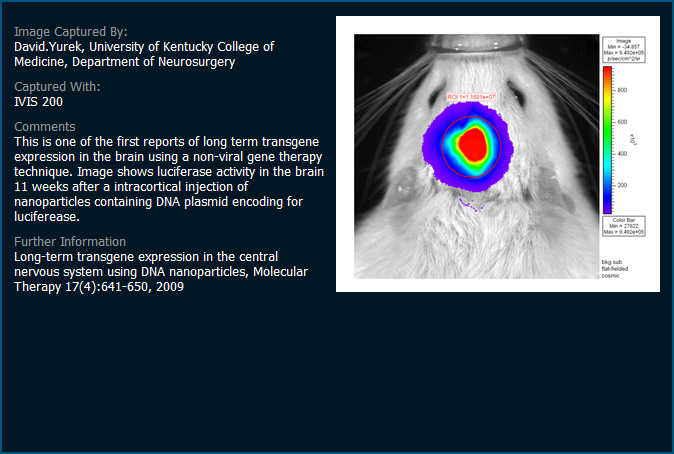

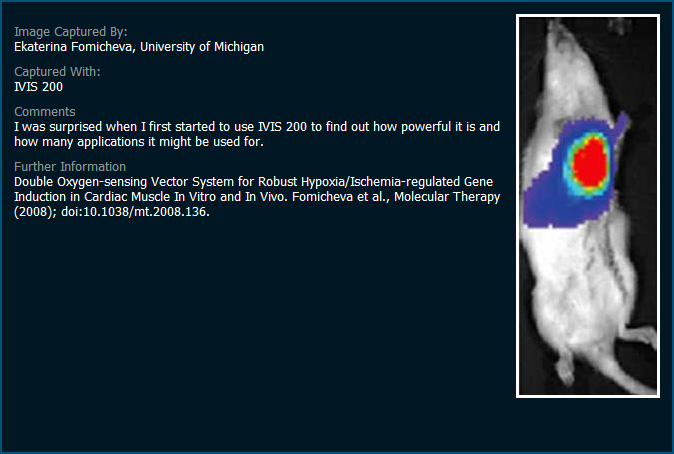

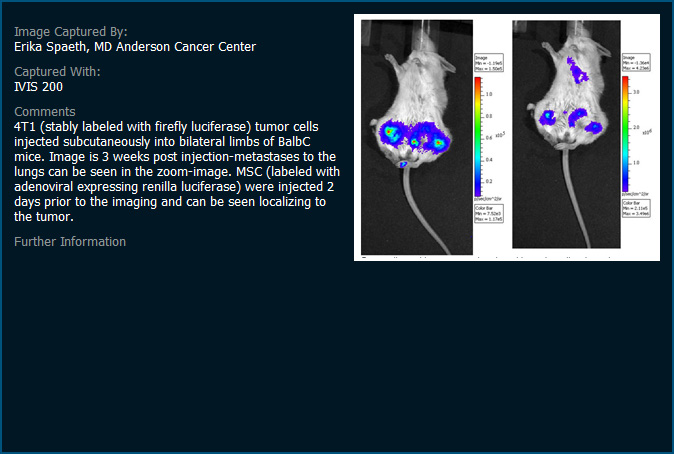

IVIS® 200
ImagingSystem |

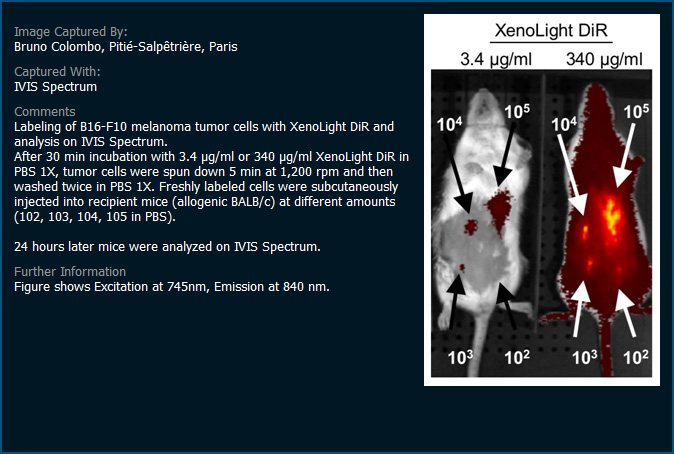

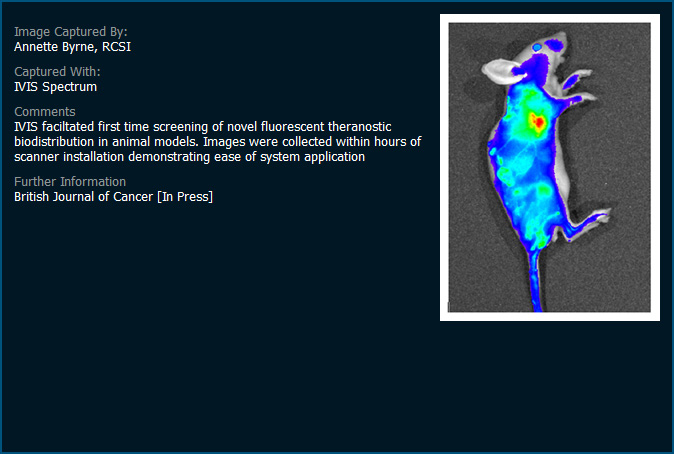

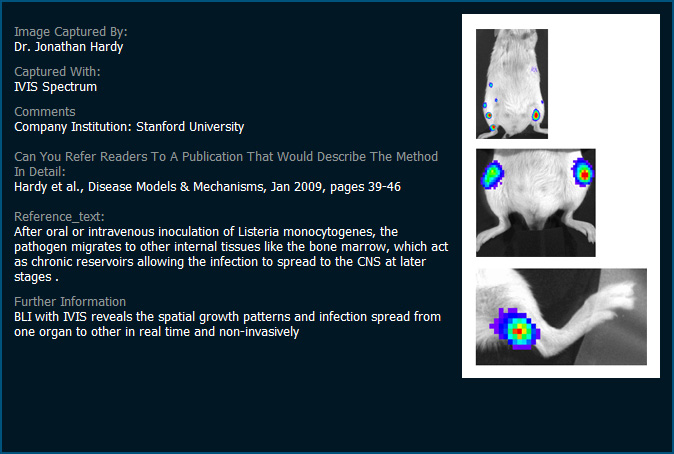

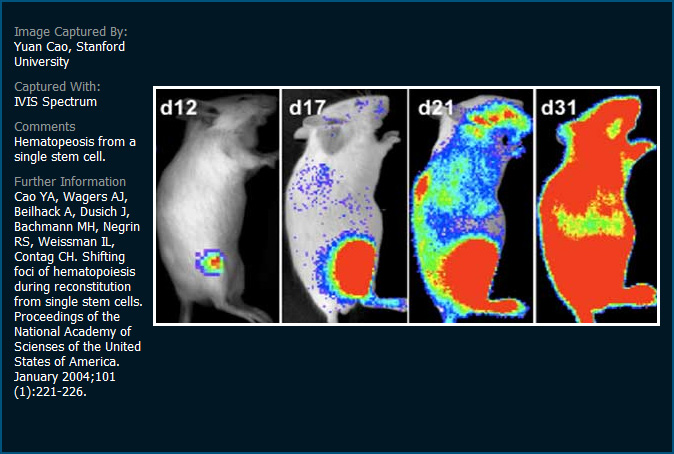

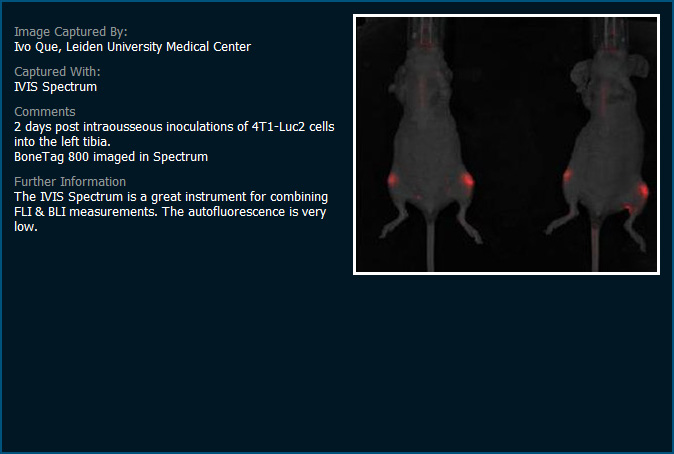

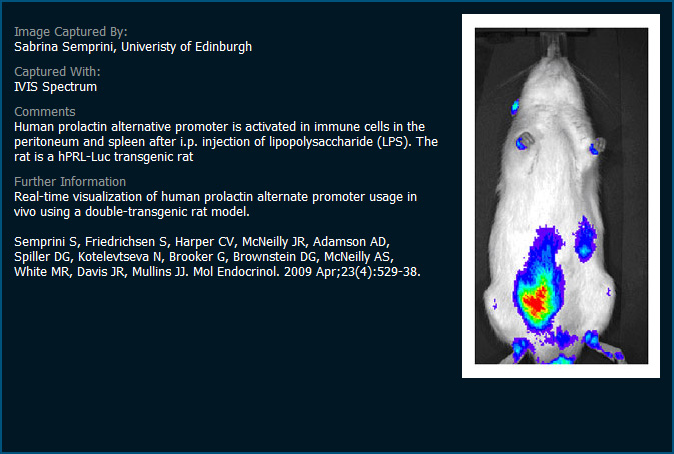

IVIS® Spectrum
ImagingSystem |
| Camera Senser |
Back-thinned,
Back-illuminated Grade 1 CCD |
Back-thinned, Back-illuminated Grade 1 CCD,frame transfer |
Back-thinned,
Back-illuminated Grade 1 CCD |
Back-thinned,
Back-illuminated Grade 1 CCD |
| Cooling Mechanism |
Thermoelectric |
Thermoelectric |
Thermoelectric
+ water bath |
Thermoelectric
+ water bath |
| CCD Operating Temp. |
-90℃ |
-80℃ (Optional chiller to achieve−90℃) |
-90℃ |
-90℃ |
| CCD Size |
1.3x1.3cm |
1.3x1.3cm |
2.7x2.7cm |
2.7x2.7cm |
| Imaging Pixels |
1024x1024 |
1024x1024 |
2048x2048 |
2048x2048 |
| Quantum Efficiency |
>85% 500-700 nm |
>85% 500-700 nm |
>85% 500-700 nm |
>85% 500-700 nm |
| Pixel Size |
13microns |
13microns |
13.5microns |
13.5microns |
| Minimum Detectable Radiance |
100 photons/s/sr/cm2 |
100 photons/s/sr/cm2 |
70 photons/s/sr/cm2 |
70 photons/s/sr/cm2 |
| Min.Field of View (FOV) |
5x5cm |
5x5cm |
3.9x3.9cm |
3.9x3.9cm |
| Max.Field of View (FOV) |
12.5x 12.5cm
(Optional 24x24cm) |
12.5x 12.5cm
(Optional 24x24cm) |
23x23cm |
23x23cm |
| Minimum Image Pixel Resolution |
50microns |
50microns |
20microns |
20microns |
| Lens |
f/.95 - f/16,50mm |
f/.95 - f/16,50mm |
f/1- f/8, 1.5x, 2.5x, 5x, 8.7x
Magnifications |
f/1- f/8, 1.5x, 2.5x, 5x, 8.7x
Magnifications |
| Linear Electron Multiplier Gain |
|
1,50,100,250 |
|
|
| Frame rate |
|
9fps at bin=1,36fps at bin=2,144fps at bin=4,576fps at bin=8 |
|
|
| Pixel Read out Rate |
|
10,5,3,1 MHz |
|
|
| Amplifiers |
|
EM and Conventional |
|
|
| Effective Read Noise (e-) |
|
6-47 (Gain and Read-out Speed Dependant) |
|
|
| Reae Noise |
<3 electrons for bin = 1,2,4
<5 electrons for bin = 8,16 |
<3 electrons for bin = 1,2,4
<5 electrons for bin = 8,16 |
<3 electrons for bin = 1,2,4
<5 electrons for bin = 8,16 |
<3 electrons for bin = 1,2,4
<5 electrons for bin = 8,16 |
| Dark Current |
<120 electrons/s/cm2 |
<120 electrons/s/cm2 |
<100 electrons/s/cm2 |
<100 electrons/s/cm2 |
| Stage Temperature |
20-40℃ |
20-40℃ |
20-40℃ |
20-40℃ |
| Laser Scanning Galvonometer |
No |
No |
Yes |
Yes |
| Imaging Chamber Interior Dimension |
43x38x43cm
(WxDxH) |
43x38x43cm
(WxDxH) |
43x50x60cm
(WxDxH) |
43x50x60cm
(WxDxH) |
| Imaging System Space Requirement |
48x71x104cm
(WxDxH) |
48x71x104cm
(WxDxH) |
203x163x214cm
(WxDxH) |
203x163x214cm
(WxDxH) |
| Power Requirements |
8A at 100V |
8A at 100V |
12A at 100V |
12A at 100V |
| Fluorescence Imaging Components |
Option |
Option |
Option |
Option |
| Fluorescence Lamp |
150W Quartz halogen |
150W Quartz halogen |
150W Quartz halogen |
150W Quartz halogen |
| Fluorescence illumination source |
Top (Epi-illumination) |
Top (Epi-illumination) |
Top (Epi-illumination) |
Top (Epi-illumination) and
Bottom (Trans-illumination) |
| Excitation Filters |
8 |
8 |
8 |
10 |
| Emission Filters |
4 |
4 |
4 |
18 |
| Spectral Imaging Filters |
|
|
6 |
|
| その他 |
|
|

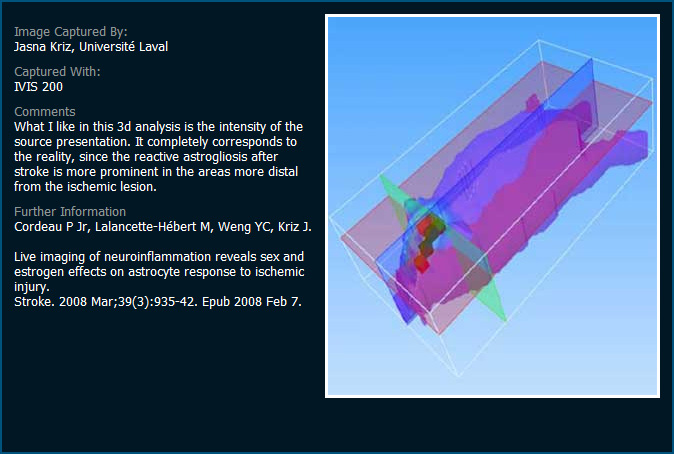

体表面の3Dイメージを作成可能
発光光源の3D解析が可能 |
体表面の3Dイメージを作成可能
発光光源の3D解析が可能
蛍光光源の3D解析が可能 Spectral Unmixing
透過型蛍光イメージング |
